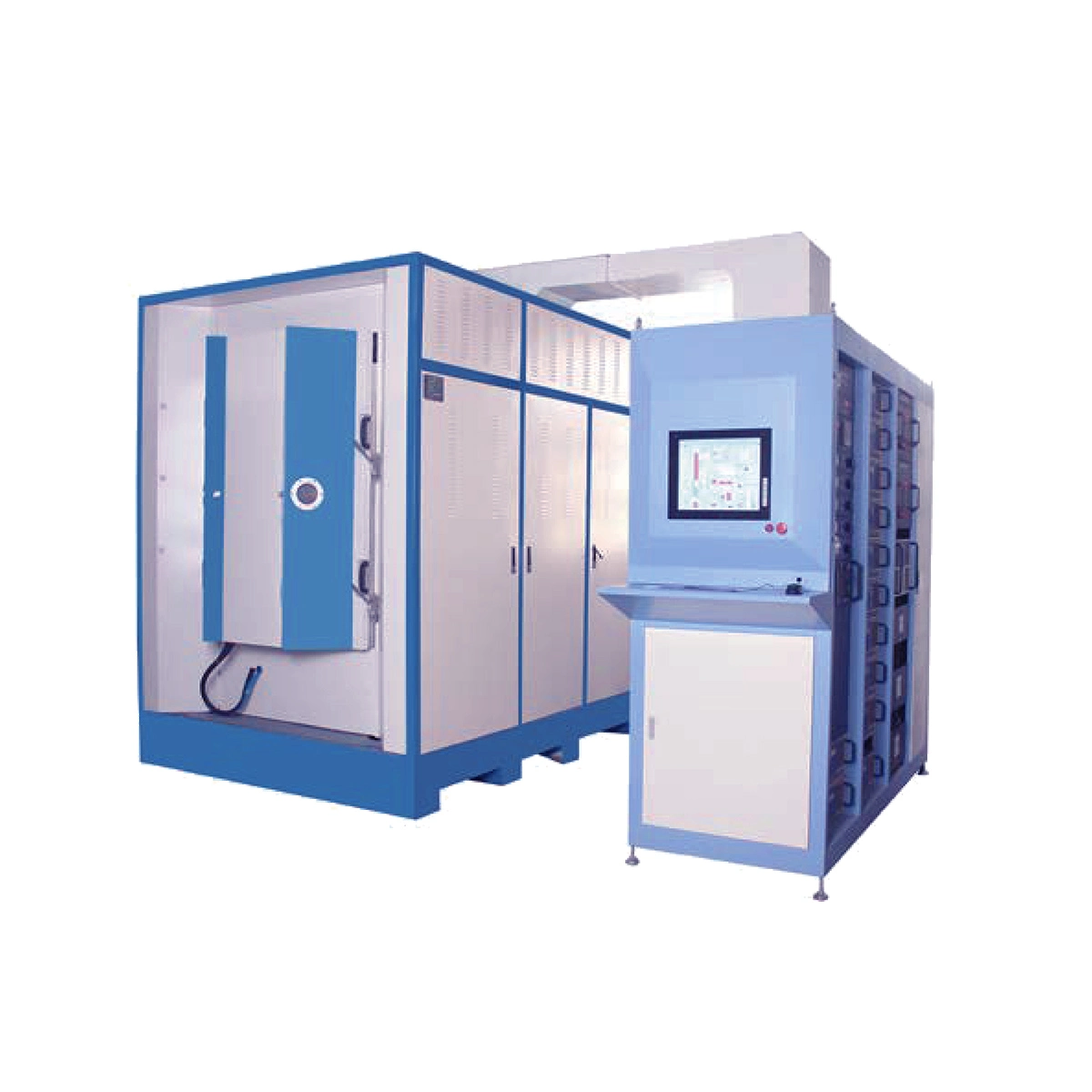

The equipment adopts fully automatic control mode, advanced process control mode, stable and reliable performance, and simple and convenient operation. And integrating advanced new arc source coating technology and ion assisted pre-treatment coating technology, it can deposit high-quality, dense film formation, good adhesion, and high hardness hard coatings, greatly improving the service life of tools and cutting tools.
This equipment can prepare TiN \ CrN \ AlCrN \ ZrN \ TiC \ TiCN \ TiAlN \ TiAlCN \ DLC films, etc., which are very suitable for production enterprises to deposit single-layer/multi-layer hard coatings, corrosion-resistant coatings and other functional films on cutting tools (drill bits, milling cutters, cutters, taps, hobbing cutters, turning tools, cutting chips, etc.), high-precision molds (stamping molds, shearing molds, forming molds, injection molding molds, etc.) and other key components in large quantities.
Equipment name | Nano-superhard coating equipment |
Equipment model | GDM1000 |
Vacuum chamber size | Φ1000mm×H1200mm |
Vacuum system | Domestic/imported molecular pump + Roots pump + mechanical pump high vacuum system |
Ultimate vacuum | better than 8.0×10-5Pa |
Pumping speed | from atmosphere to 5.0×10-3Pa ≤ 25min pressure rise rate, vacuum degree ≤ 10Pa after shutdown for 12 hours |
Workpiece rack size | 8~12 stations, two sets of 3-axis linkage workpiece racks; equipped with special workpiece car |
Workpiece baking temperature | room temperature~500℃, adjustable and controllable (PID temperature control) |
Configuration | new arc source 6-12 optional, ion source, bias voltage |
System | fully automatic control system, personalized Tech-Coating control menu, safety protection system |
Occupancy area | L4000mm×W3000mm |
